PLN55 Recycling Extruder

“ Recycling Extruder ”

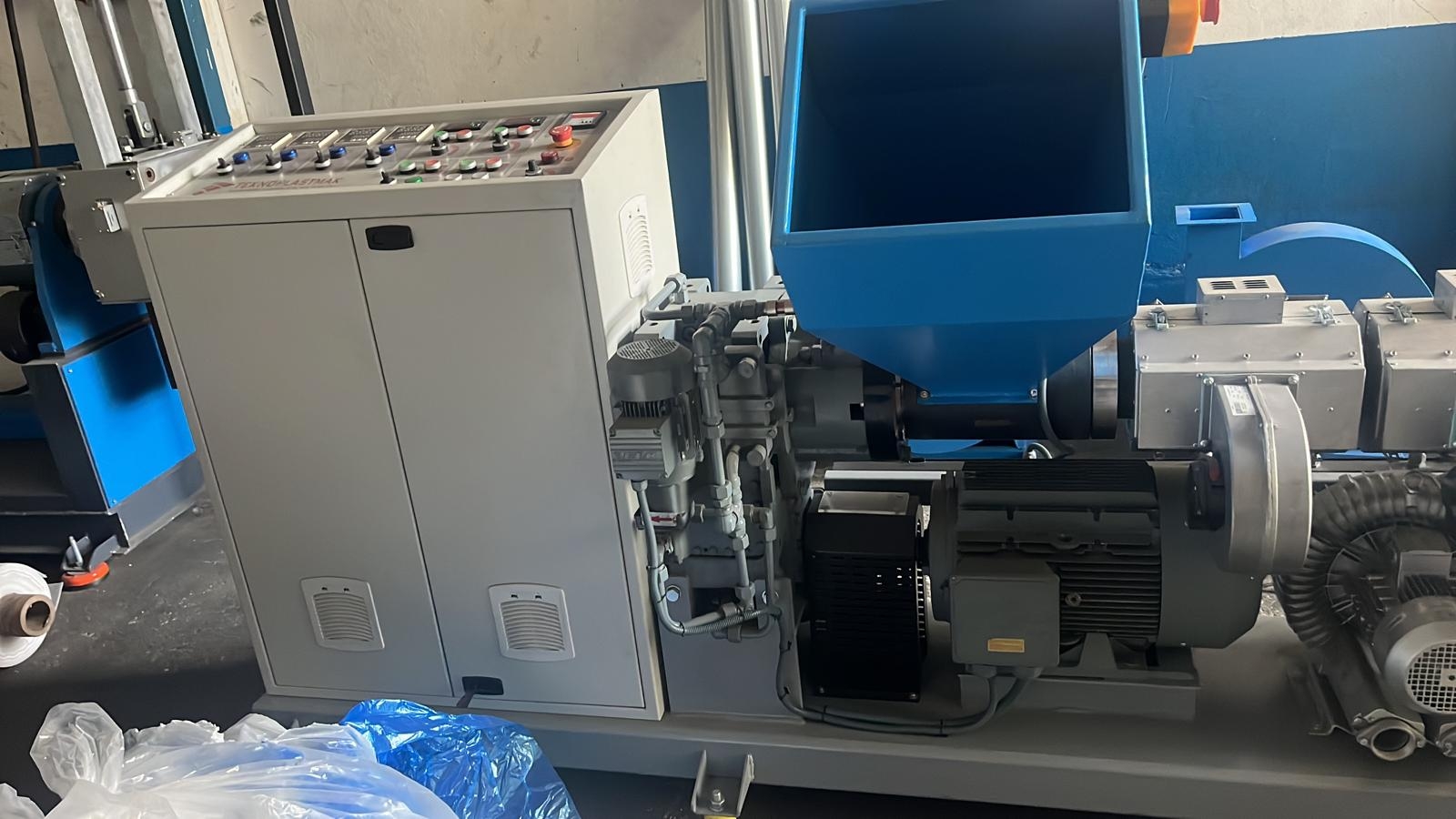

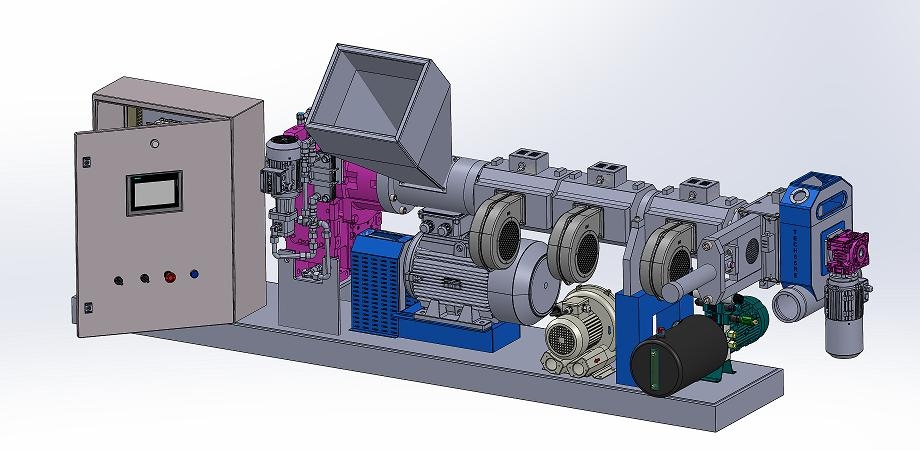

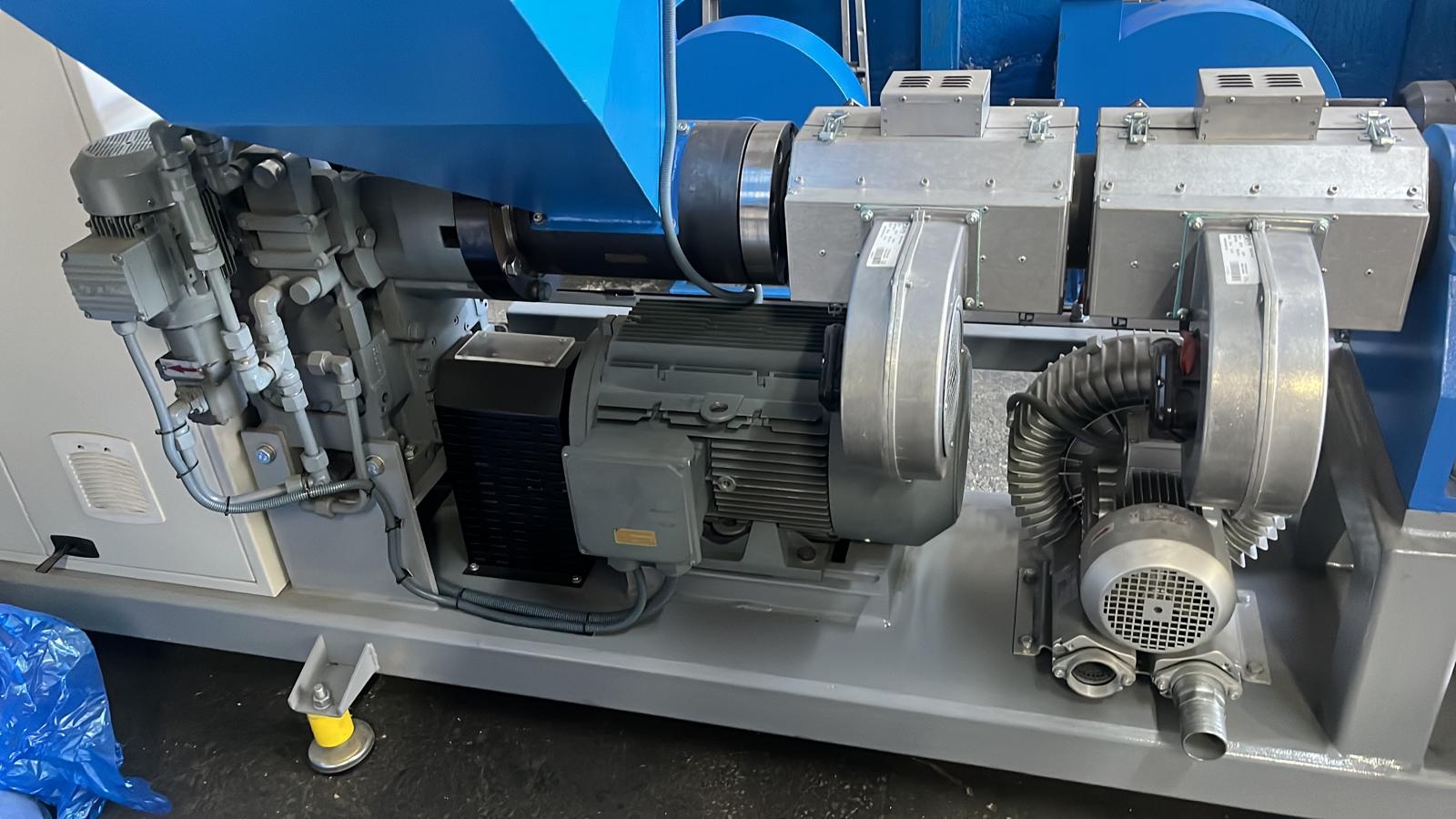

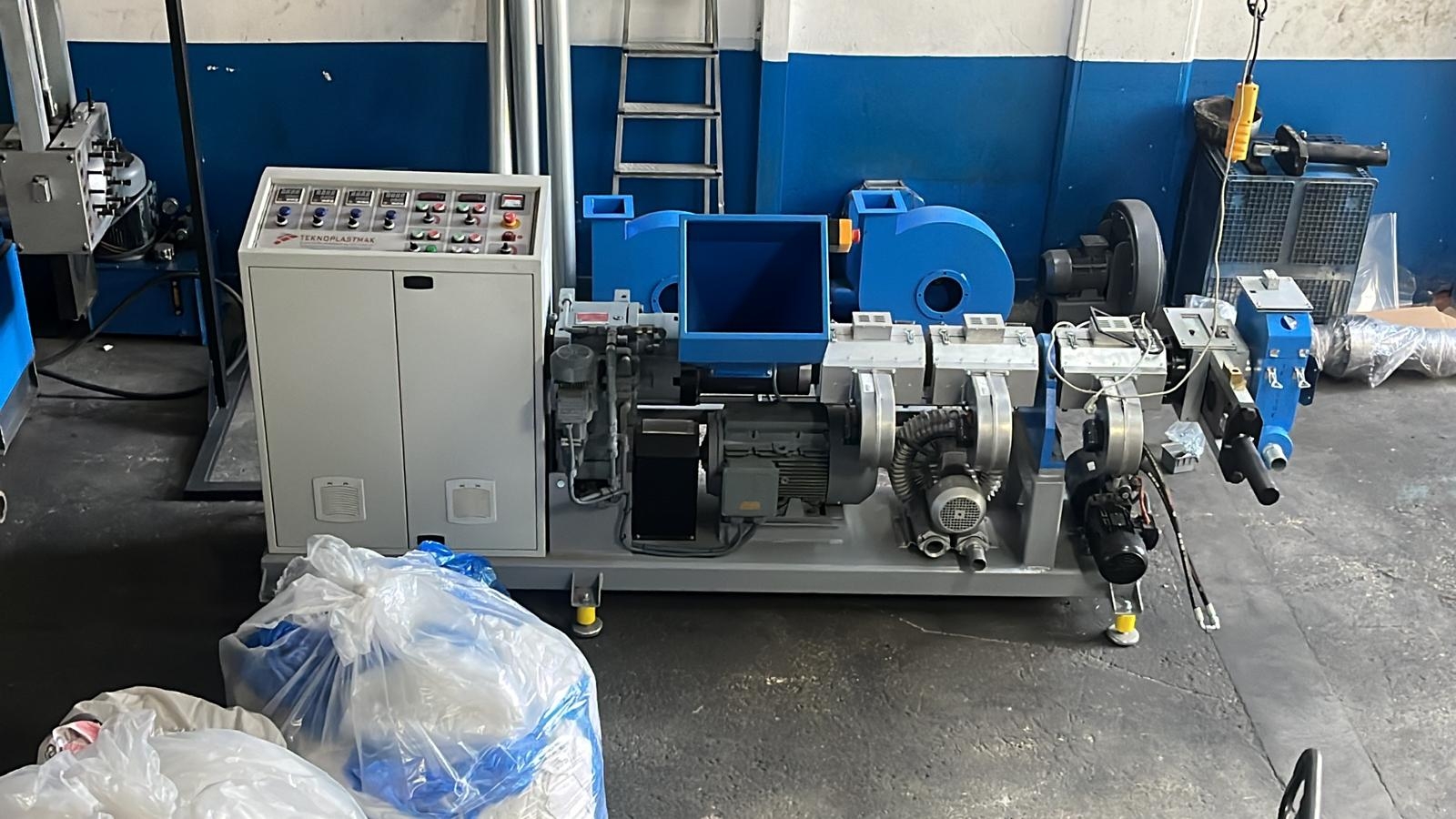

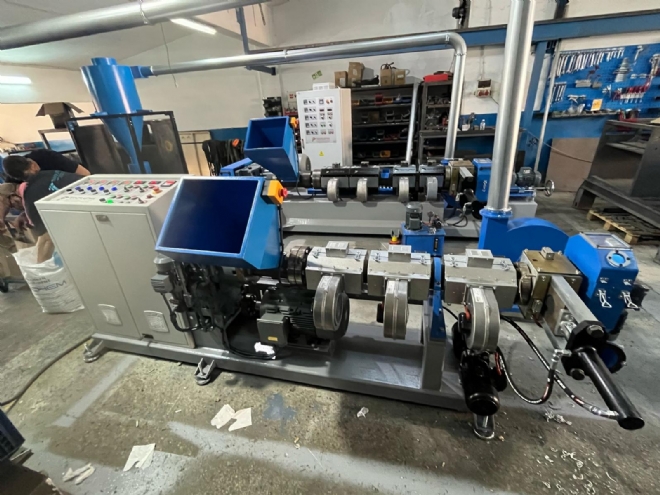

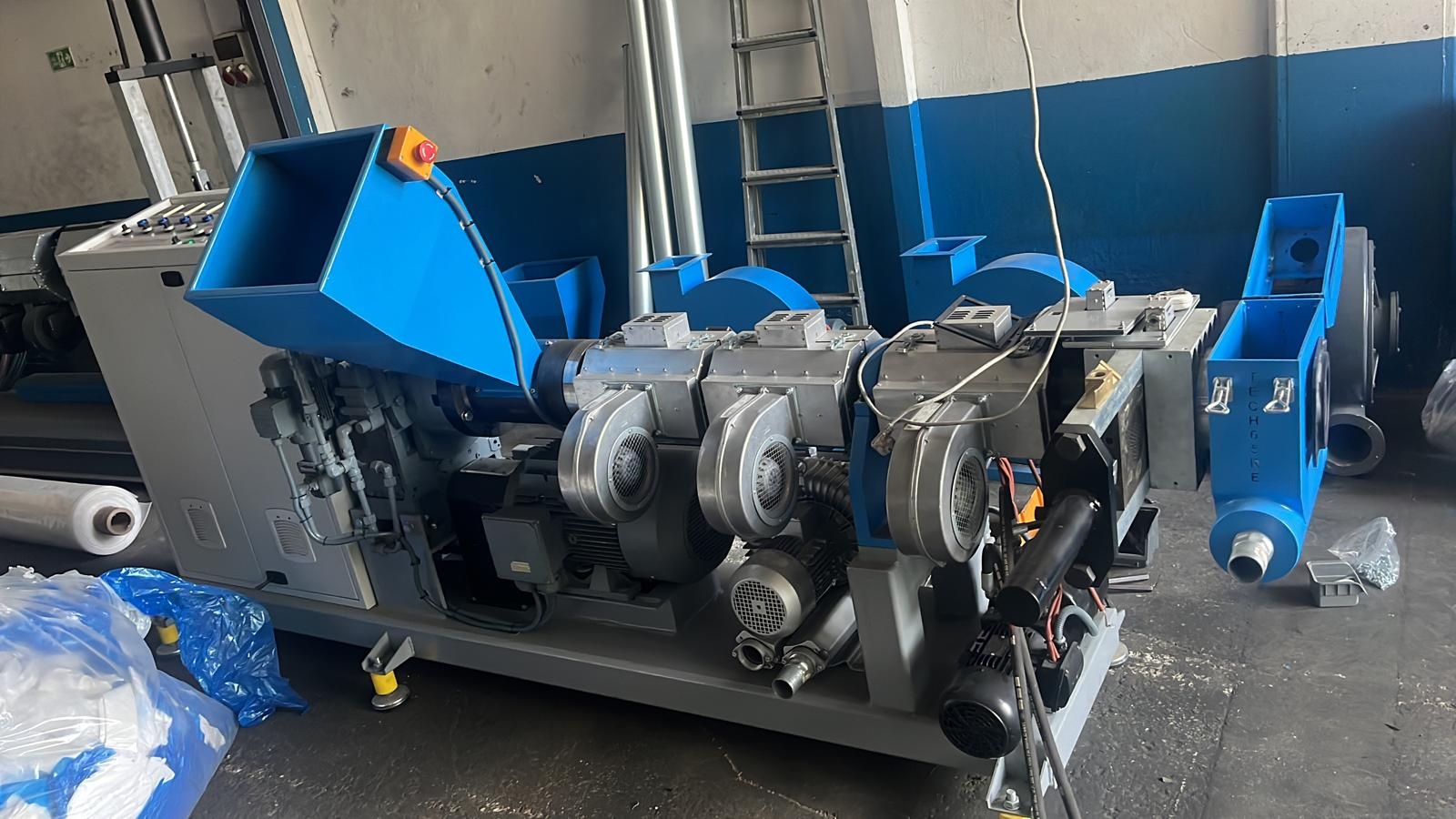

PLN55 Recycling Extruder

Functionality
The PLN55 Recycling Extruder is specifically designed for the direct recycling of PE films and similar plastic materials. Thanks to its conical screw structure, it eliminates the need for preprocessing steps such as crushing or agglomeration, ensuring a streamlined and efficient recycling process.

Main System:

• 15 kW 1450 rpm Main Motor

• 15-18.5 kW Inverter-Controlled Drive

• YILMAZ HTE0323 Series Gearbox

• Ø85-55 Screw and Barrel

• 3 Zones Ceramic Air-Insulated Heater Bands

• 3 Zones Air-Cooled Heating System

• 1 Zone Heater Head

• 4 Zones Digital Temperature Control

• Ø100 mm Hydraulic Filter System

• 1.5 kW Hydraulic Unit

• Ø100x2 Rocket Type Non-Stop Filter

• 0.75 kW 1450 rpm Cutting Motor (Inverter Controlled)

Second System:

• 0.8 mm Transfer Pipes

• 4-8 Meter Cooling Pipe

• Cooling Panel

• 1 Aluminum Blower

• 1 Unit 2.2 kW Air Fan

• Product Storage Unit

The PLN55 offers an optimized solution for direct plastic film recycling, combining smart design and durable components for high-performance results.
