PLN100 - Plastic Crusher - Shredder
Plastic shredder machines are essential pre-processing units used in recycling plants to break down various types of plastic waste. These machines efficiently shred hard and bulky materials such as pipes, profiles, bottles, drums, crates, pallets, injection-molded parts, and even film. Operating with high torque at low RPM, they reduce plastic waste into small, uniform pieces ready for further processing in granulators or extrusion lines.
The shredder is equipped with specially alloyed steel blades that are heat-treated for durability and long service life. The automatic reverse function minimizes the risk of jamming, ensuring smooth and uninterrupted operation.
The machine’s body is built with heavy-duty steel construction, and all bearings and gear systems are designed to withstand shock and high loads. Optional integrations include a metal detector, conveyor feeding system, and an automated control panel for ease of operation.
PLN 800S SINGLE SHAFT SHREDDER MACHINE
• Electric Control Panel
• Rotor Length 800 mm
• Rotor Diameter 280 mm
• Colors Green ,Grey, Yellow
• 30 Kw Main Motor

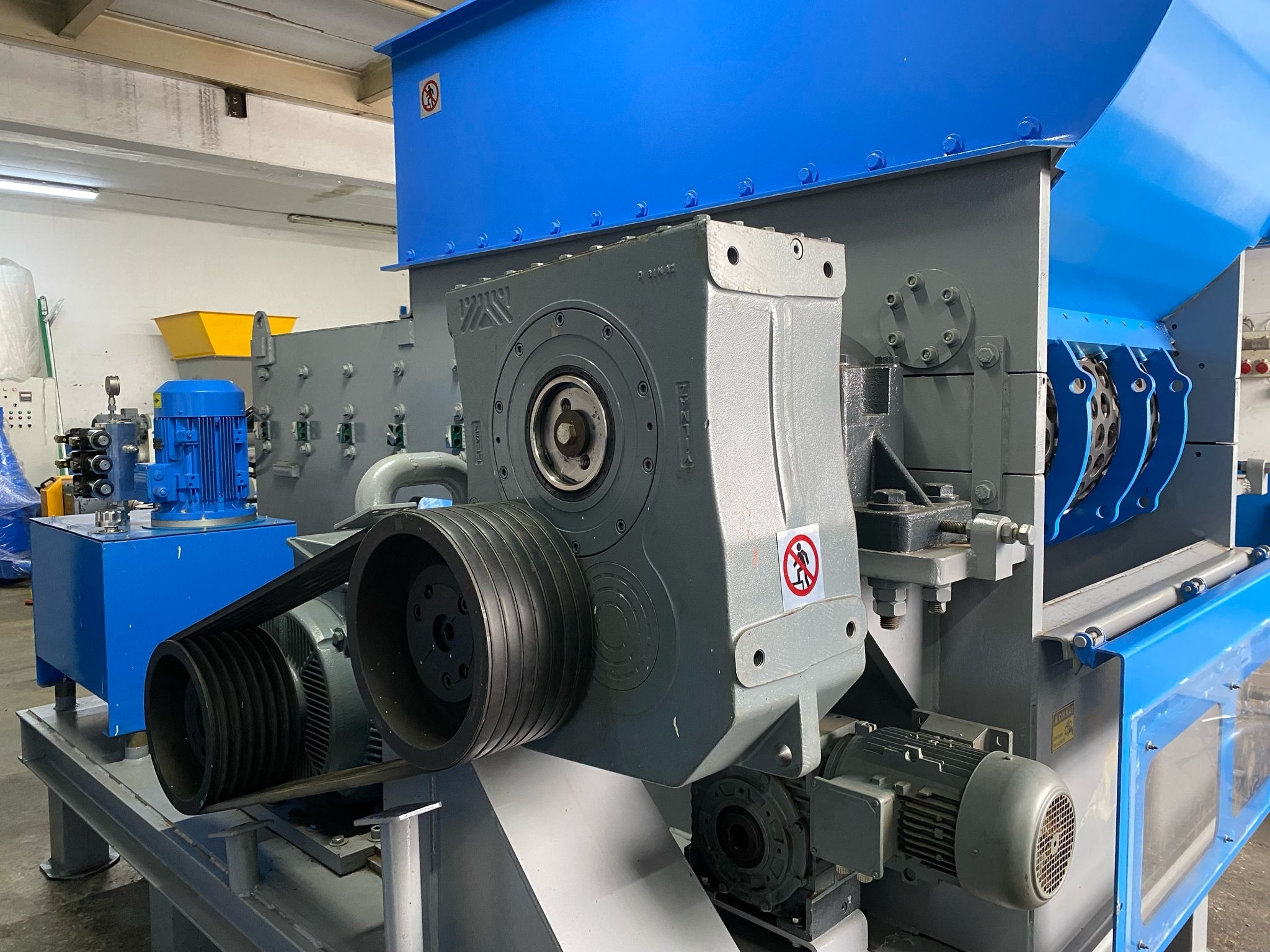

• TT Series Main Gearbox

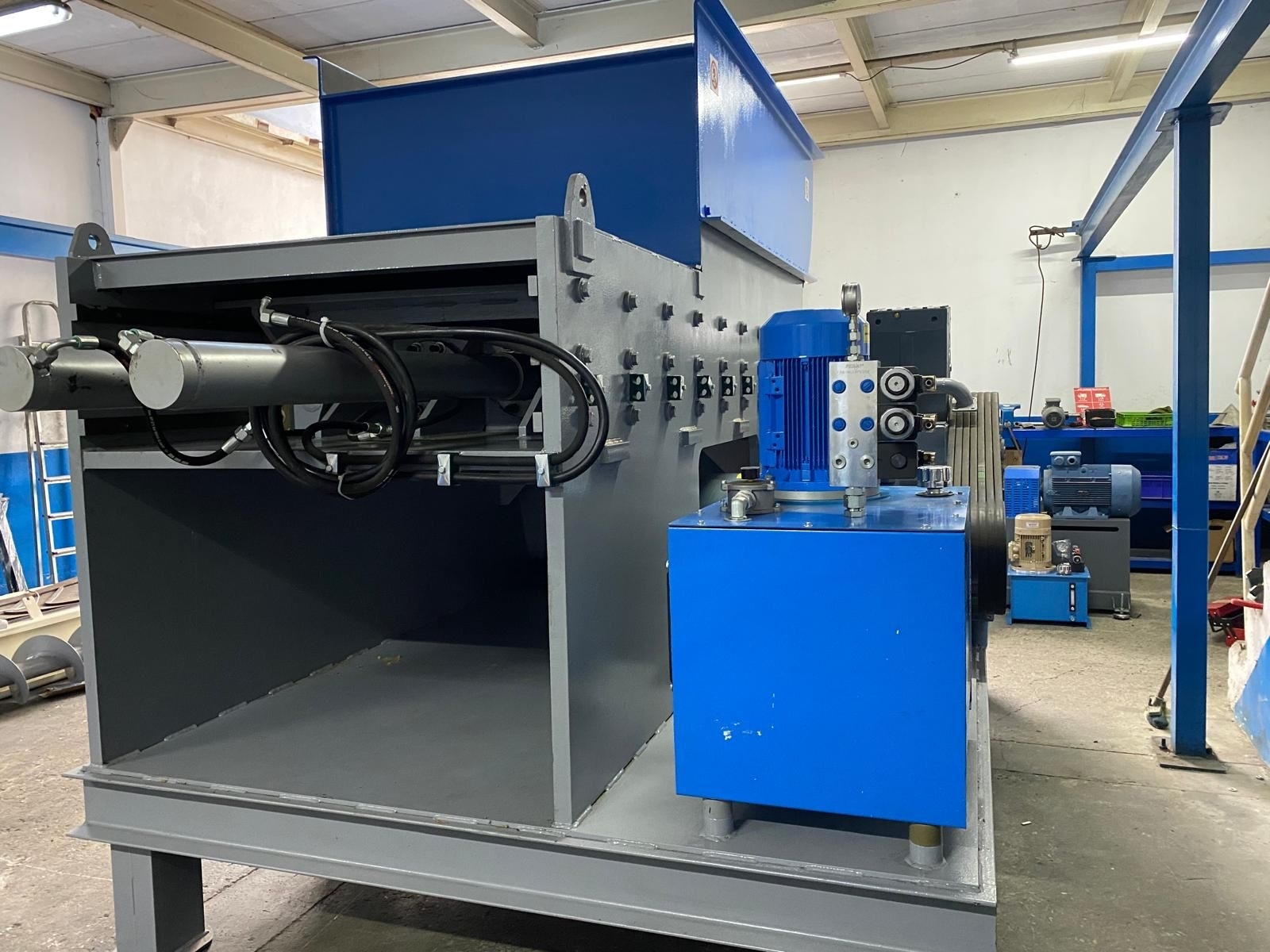

• 2.2 Kw Hydrolic Motor

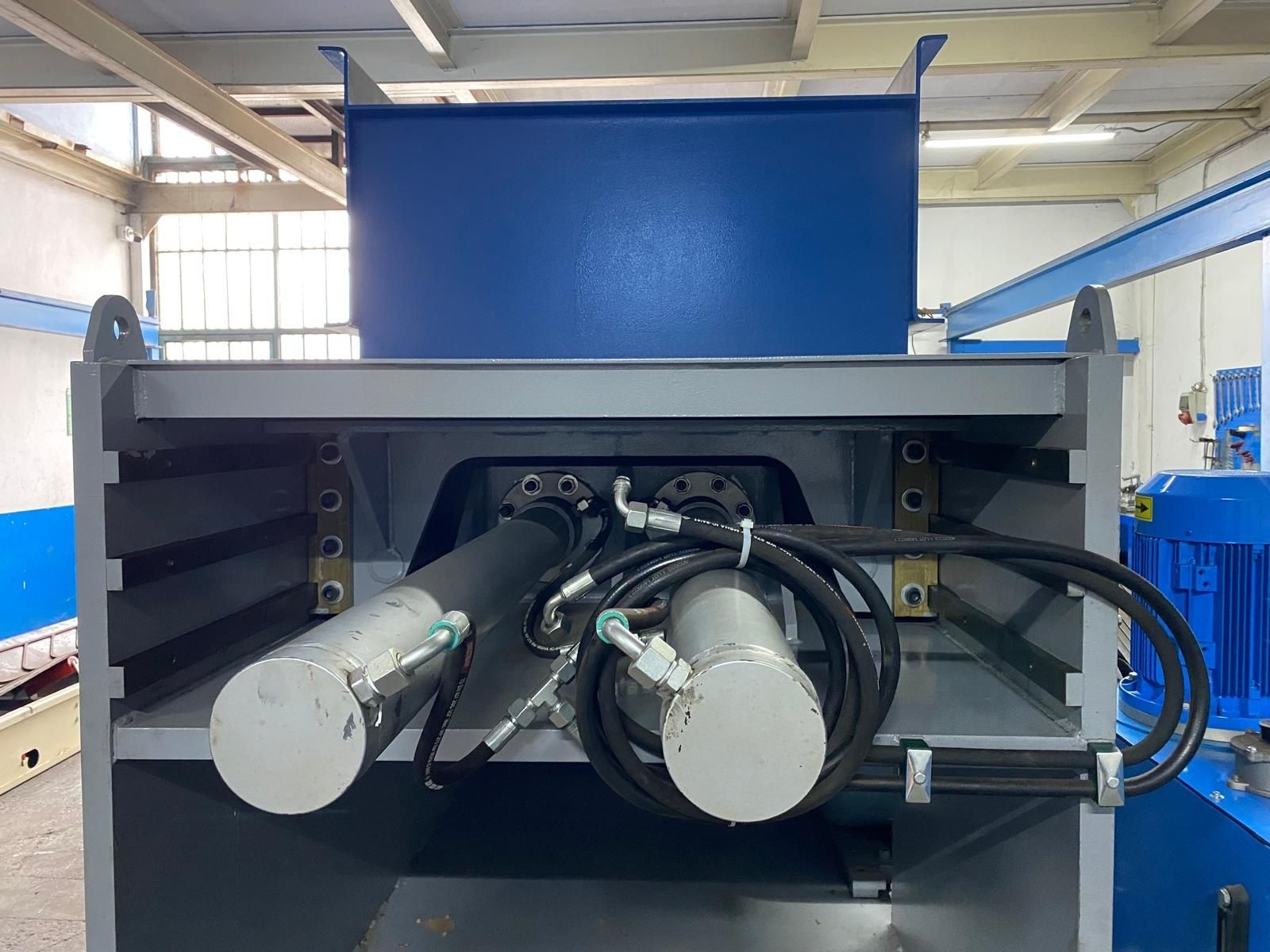

• Two Pieces Hydrolic Piston
• 800 mm Feeding Strock
• 1.5 Kw Screw Shaft Material side
• 1,5 Kw Screw Gearbox
PLN 1200S SINGLE SHAFT SHREDDER MACHINE
• Electric Control Panel
• Rotor Length 1.200 mm
• Rotor Diameter 450 mm
• Colors Green ,Grey, Yellow
• 90 Kw Main Motor
• TT Series Main Gearbox
• 7.5 Kw Hydrolic Motor
• Two Pieces Hydrolic Piston
• 1.200 mm Feeding Strock
• 64 Pieces Knives
• 1.5 Kw Screw Shaft Material side
• 1,5 Kw Screw Gearbox
Key Features:
High-torque, low-RPM motor
Heat-treated alloy steel blades
Automatic reverse system
Heavy-duty steel body
Compatible with films, bottles, pipes, injection parts, and more
User-friendly automated control panel
Quiet and efficient operation
