Independent Hole Punching Machine

“ Independent Hole Punching Machine ”

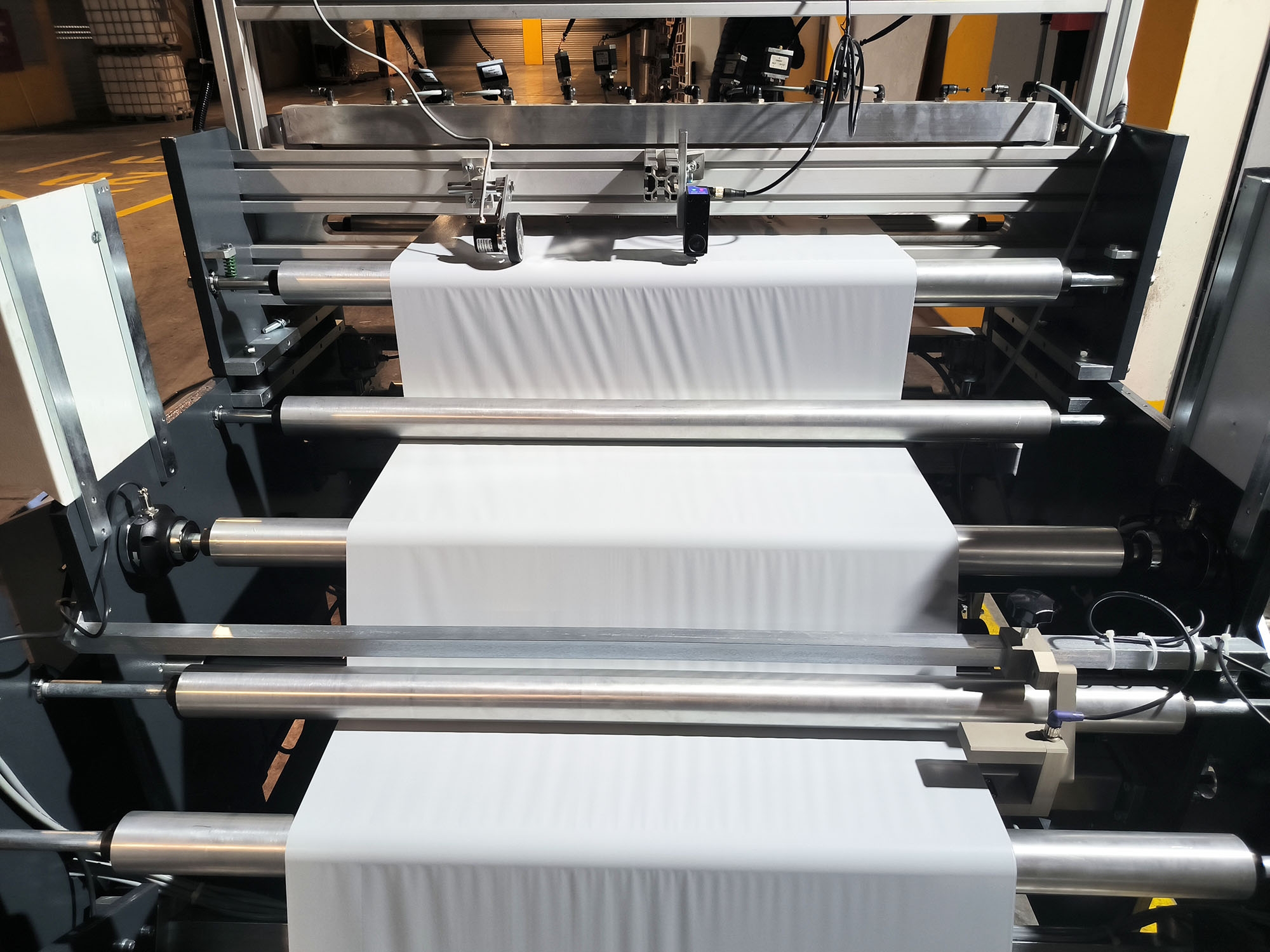

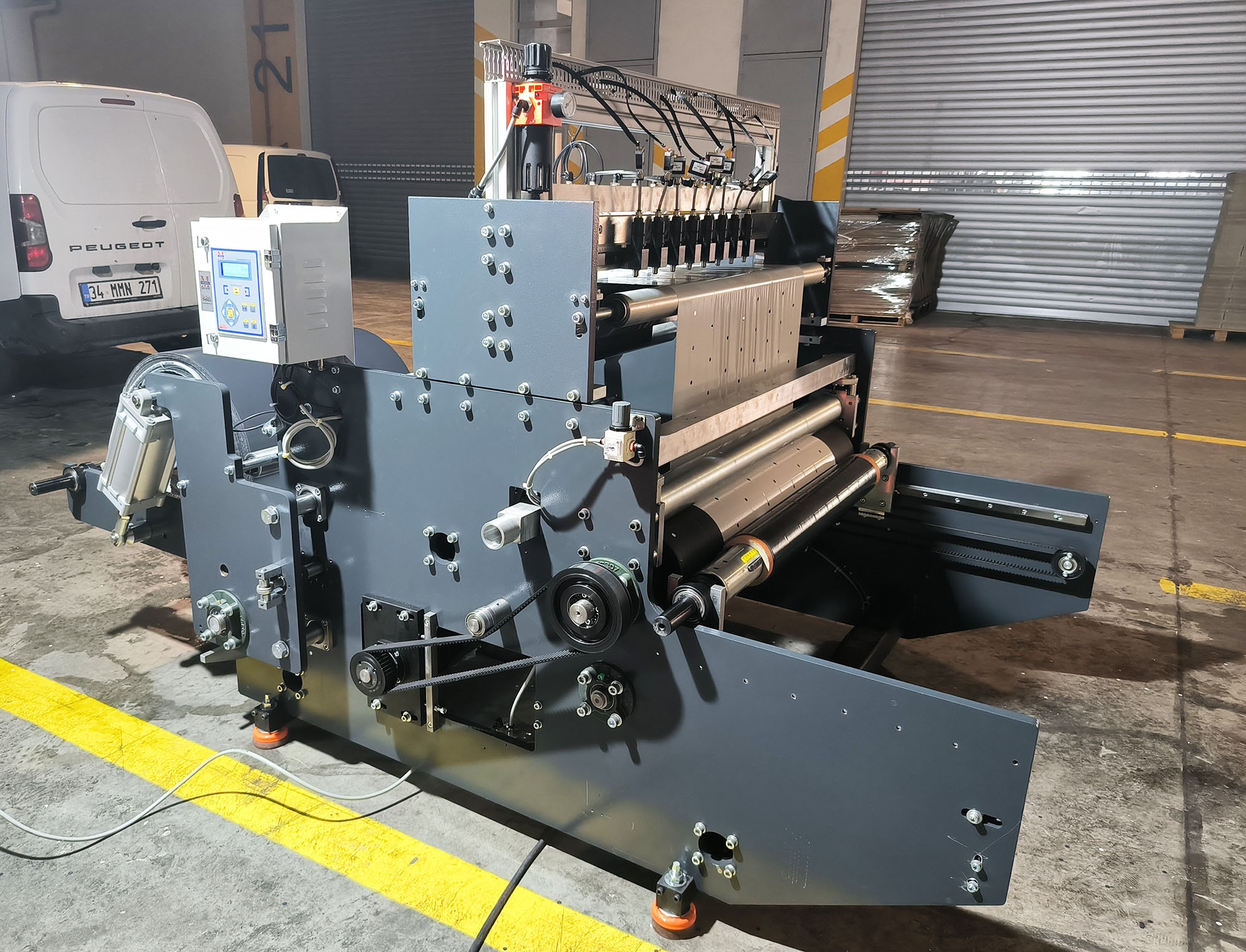

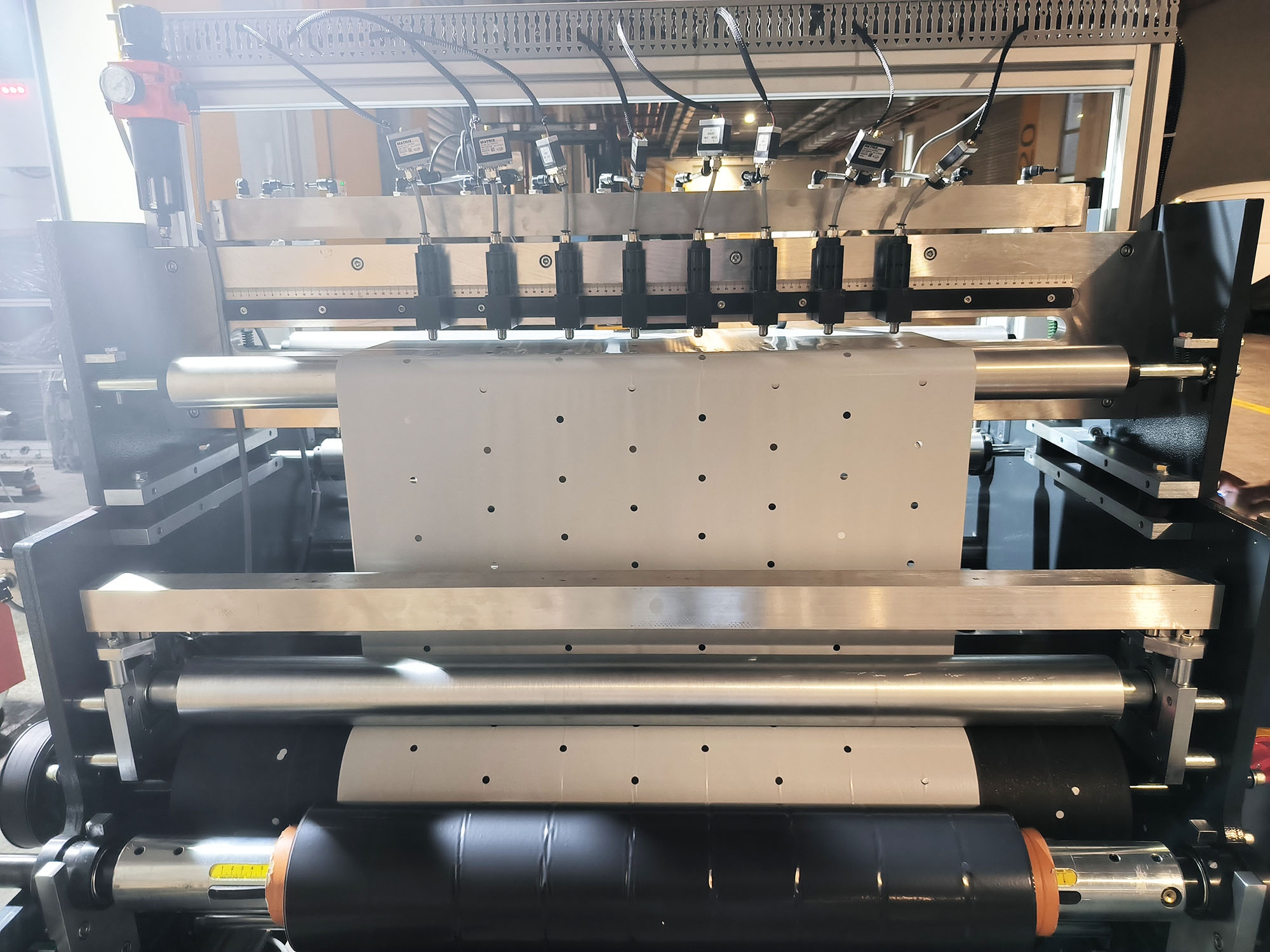

High-Speed Hole Punching Unit for Flowing Web Material with Unwinding and Rewinding

Technical Specifications:

• Maximum material width: 1000 mm

• Hole diameter: 8 mm

• Number of holes: 8

• Punching speed: 20 holes/sec

• Film line speed: 120 m/min (varies depending on punching interval)

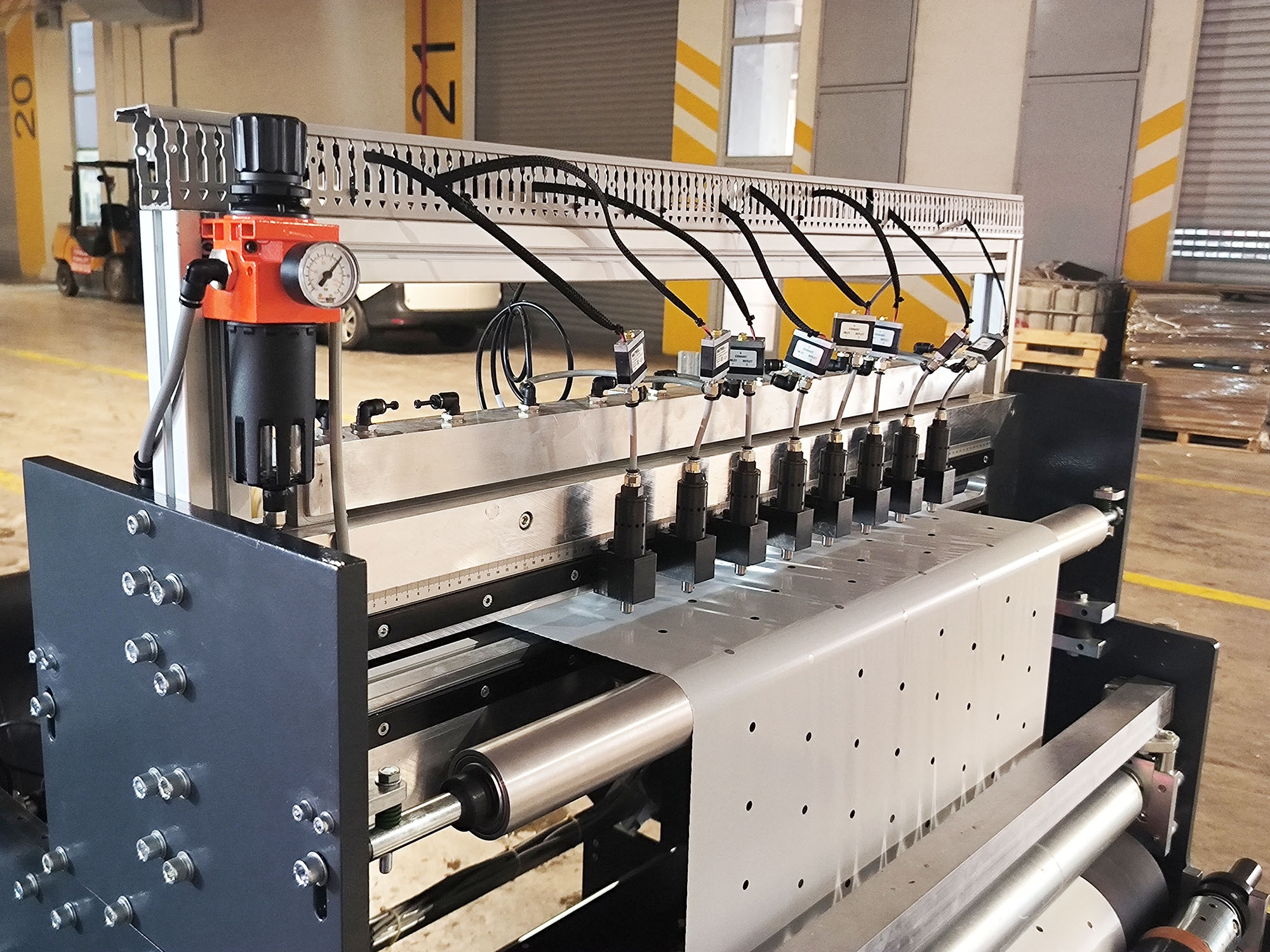

• Operates with a high-speed pneumatic cylinder

• Control system: PLC

• Hole spacing adjustable via touchscreen

• Valve open/close times adjustable via touchscreen

• Particles from punched film are transferred to a tank via vacuum system

• Each punching die can be independently activated/deactivated from the screen

• Color sensor available for printed films

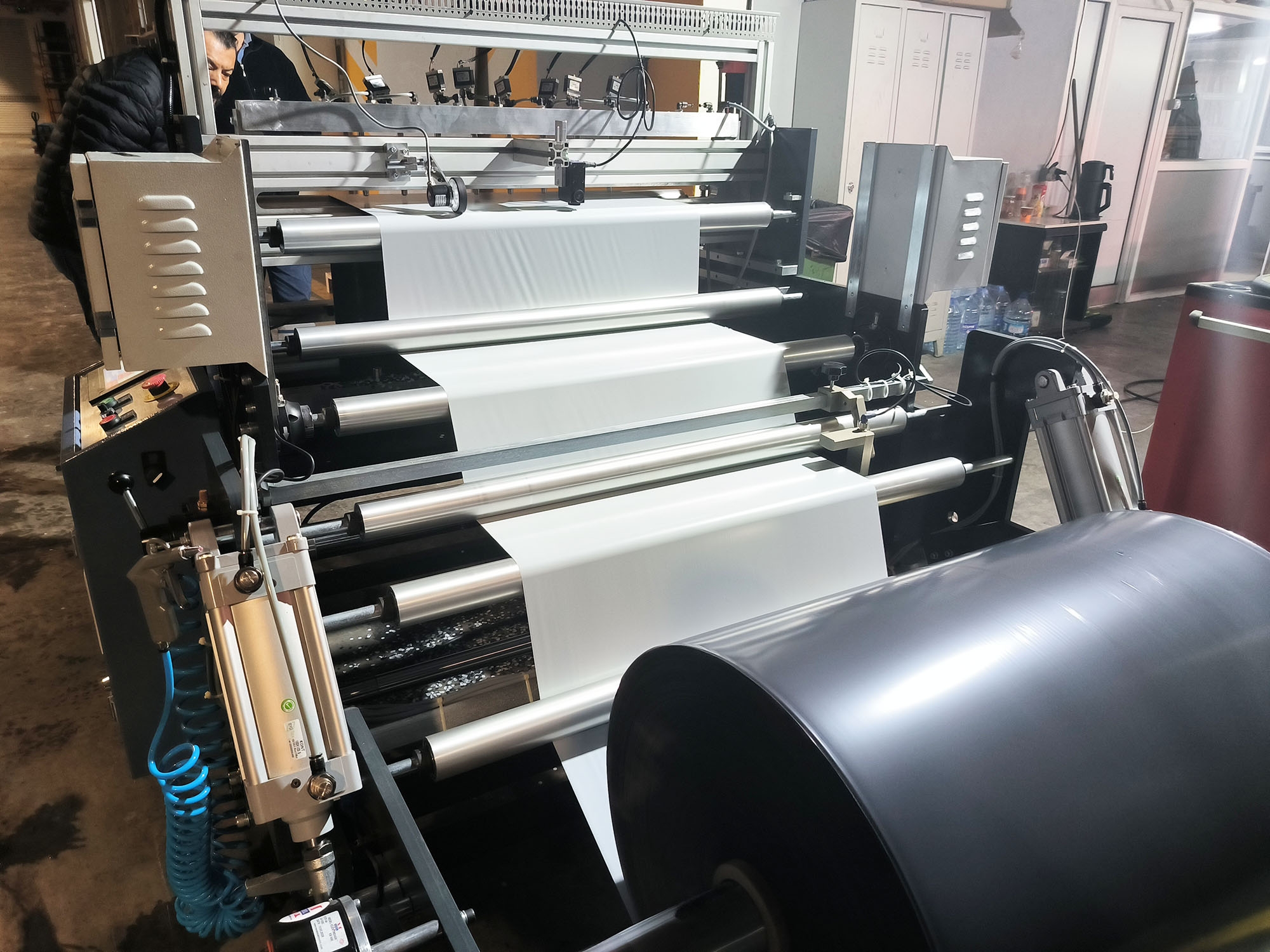

Unwinding Section:

• Precision film tension control with AC motor and speed control

• Automatic edge control system

• Unwinding shaft: 3” air shaft

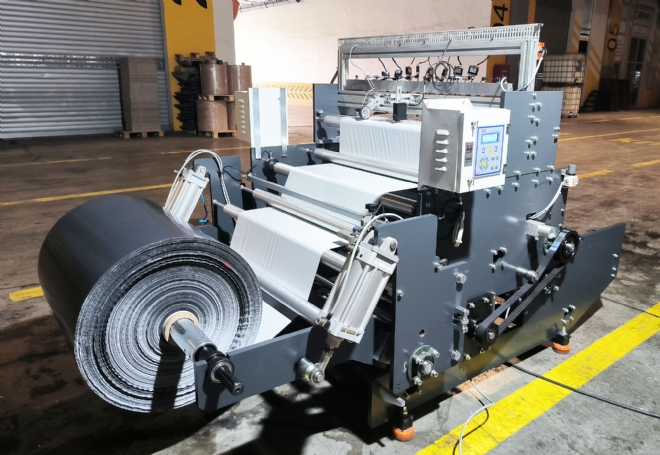

Rewinding Section:

This machine can also be used solely for foil rewinding or for slitting and rewinding purposes.

• Rewinding shaft: 3” air shaft
