The PLONTEC embossing and sealing machine is designed to emboss precise patterns and provide strong sealing on plastic film materials. With its advanced edge control, automatic winding system, and PLC-based touchscreen control, it ensures an optimized and efficient production process.
Embossing roller positioning with hydraulic system
Drive system: Speed-controlled AC motor (2 units)

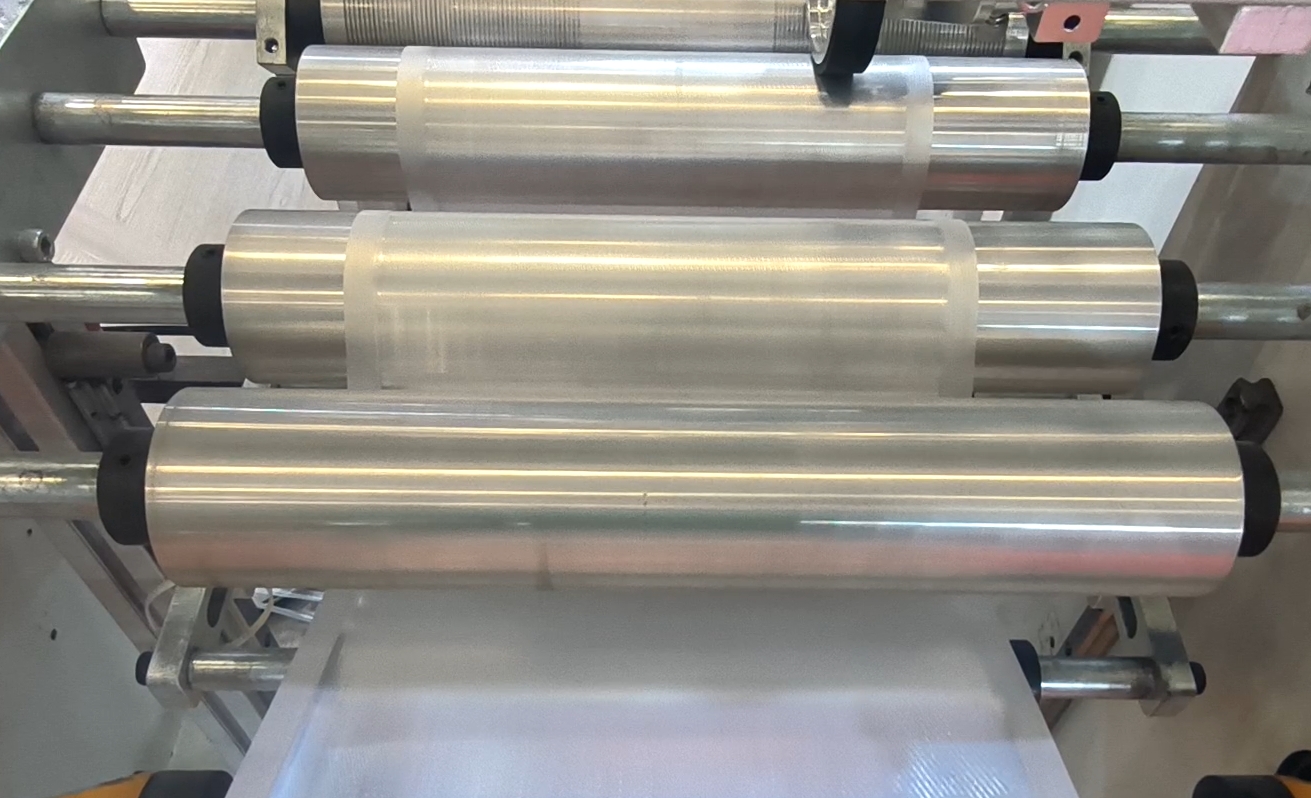

Embossing pattern roller: Water cooled
Hot air tunnel with resistance near the film (pneumatic system)

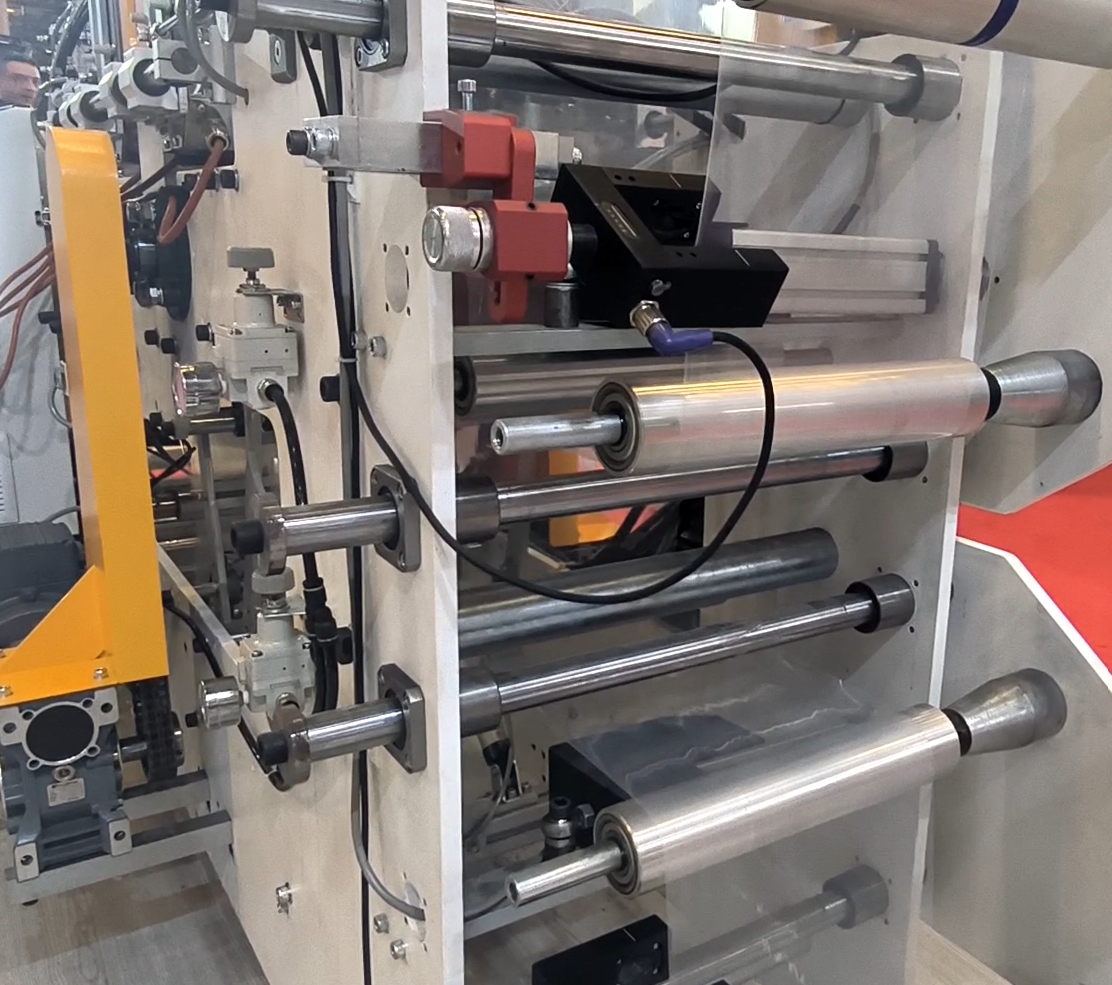

2. Film Guidance and Edge Control Unit
Edge control system: 2 units
Balanced roller system with pneumatic pressure for both films
Edge waste removal device: 2 units

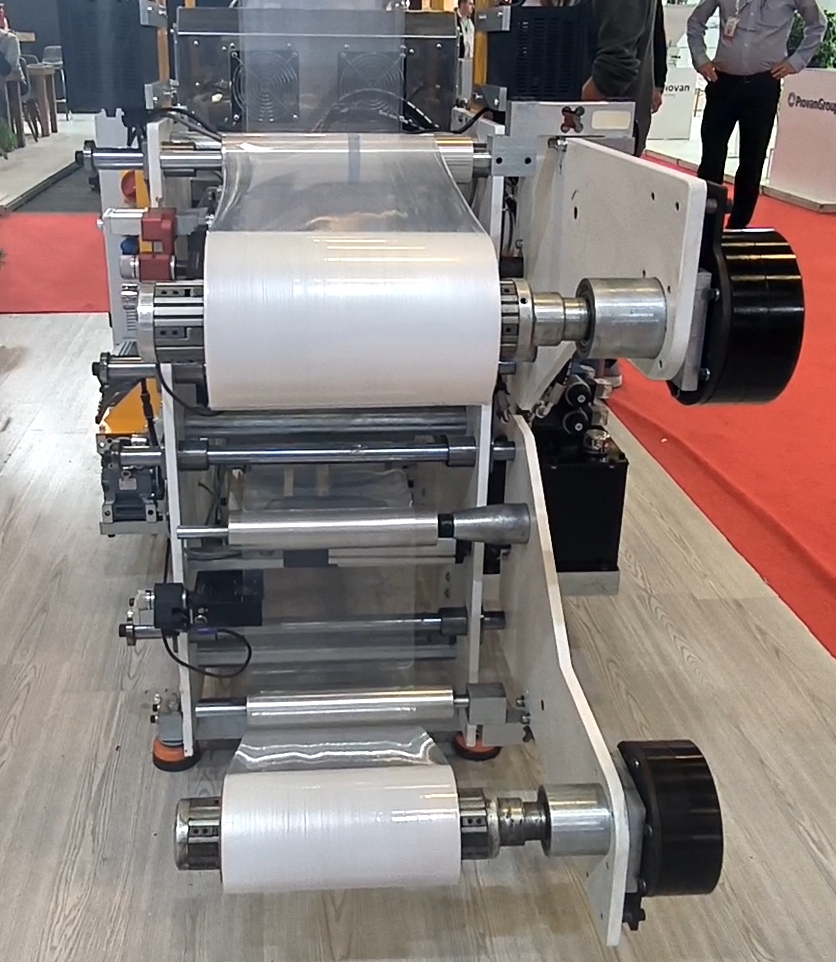

3. Winding Unit
Air shaft bobbin loading: 2 units
Tension control with magnetic torque brake and loadcell: 2 units
Automatic transfer winding system that cuts the film and shifts to the other shaft
End-of-line double shaft winding system
4. Jaw (Sealing) Unit
Silicone roller operated by pneumatic cylinder
Heat-controlled, forward-backward welding jaw: 1 unit
5. Control Unit
Control type: PLC
All settings such as temperature, speed, metering can be done via touch screen
Line speed: 15 m/min (may vary depending on film type and thickness)
